Air Operated/ Pneumatic Shot Blasting Machine
Leading Manufacturers, Exporters and Wholesaler of Shot Blasting machine Ball Valve BALL, Portable Abrasive Blaster, Pressure Blaster, Suction Blaster, Wet Blasting Machine, Roll Etching Machine, Indexing Table Type Shot Blasting Machine, Tyre Mould Cleaning Blasting Machine, Geyser Tank Cleaning Blasting Machine and Internal Pipe Cleaning Tool from Jodhpur.
| Business Type | Manufacturer |
| Brand Name | NSBEC |
| Material | Machine |
| Driven Type | Pneumatic, Mechanical, Electric |
| Color | White, Grey |
| Condition | New |
| Automatic Grade | Fully Automatic |
| Power | 9-12kw |
| Application | SHOT BLASTING |
| Certification | CE |
| Voltage | 440V |
| Capacity | 100 / Per day |
| Machine Type | SPL |
| Cleaning Type | Blasting |
| Type | Shot Blasting Machine |
| Weight | 3000-4000kg |
| Phase | 3 Phase |
| Warranty | 1year |
| After-Sales Service Provided | YES |
| Country of Origin | India |
| Product Code | PB-121313 SPL |
| Port | JODHPUR |
| Payment Terms | Other |
| Delivery Time | 4 TO 8 WEEK |
| Packaging Details | We provide standard plastic cover packing and wooden box packing according to customer’s requirements |
Preferred Buyer From
| Location | Worldwide |
“NSBEC” Make Shot Blasting Machine for Surface prepartion on inside & outside periphery of BALL VALVE BALLS
Operates on the direct pressure principle of Shot Blasting and fully automatic operation.
Salient Features
- Acoustic Shot Blasting Chamber with wall protection Rubber lining 3 mm thk.
- Indexing turn table Servo drive (6 Stations)
- Satellite system (job rotation)
- Blasting Nozzle Gun reciprocation system with VFD & Encoder (Vertical 2 station one outer and one inner surfaces shot blasting)
- Reclaimer Unit
- Storage Tank
- Pressure Pot 2 & 3 CFT
- Thompson Valve 2 Nos (Abrasive control valve)
- Close Loop Air pressure Regulator
- Pleated Dust collector
- PLC Operated control panel
- Automatic operation Auto/Manual
- Sequence Parameter
- Stroke & Speed controlled
- Job code will be provided in HMI interface system For different job size
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Mild Steel |
| Operating Mode | Automatic |
| Phase | Three Phase |
| Abrasive Tank Capacity | 10-50kg/h |
| Finishing | Polished |
| Power | 1-3kw |
| Frequency | 50 Hz |
| IP Rating | IP 65 |
| Capacity | 150 Kg To 2000 Kg |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Voltage (V) | 415 V |
| Motor Speed (RPM) | 2800 RPM |
| Automation Grade | Manual Cabinet Type Machine |
| Finishing | Paint Coated |
| Phase | Three Phase |
| IP Rating | IP 65 |
| Production Capacity | 6-10 Sq. Mtr per Hr. |
| Pressure | 80 PSI |
| Frequency | 50 Hz. |
| Product Code | PB-9182 |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Condition | New |
| Voltage | 415V |
| Features | Suction type |
| Usage/application | Aluminum Component |
| Capacity | 150 Kg. |
| Design Type | SPL |
| Product Type | Blasting machine |
| Product Code | SB-20012090 SPL |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Offered By | National Shot Blasting Equipment Company |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Weight | 100-1000kg |
| Voltage | 380V |
| Automatic Grade | Automatic |
| Driven Type | Electric |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Automatic Grade | Semi Automatic |
| Brand Name | NSBEC |
| Phase | 3 Phase |
| Machine Type | Indexing Machine for Cookware |
| Capacity | 1500-2000 Pc per Shift |
| Die Locking Force | NA |
| Motor Power | Total Power Consumption 3 KW |
Preferred Buyer From
| Location | Worldwide |
Rotary Indexing Type Cookware Blasting Machine with 4 or 6 Nos. Horizontal and vertical reciprocating Gun as per job size and required production. Production Output 1500 - 2000 pc. per day.
| Business Type | Manufacturer, Exporter, Supplier |
| Power | 10 KW |
| Phase | 3 Phase |
| Voltage | 415V |
| Diameter | For 1.8 Mtrs Dia Mould of Tyre |
| Material | M.S |
| Frequency | 50 Hz. |
| Country of Origin | Made in India |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Application | Geyser Tank Cleaning |
| Voltage | 380V |
| Power | 3-6kw |
| Driven Type | Electric |
| Automation Grade | Automatic |
Preferred Buyer From
| Location | Worldwide |

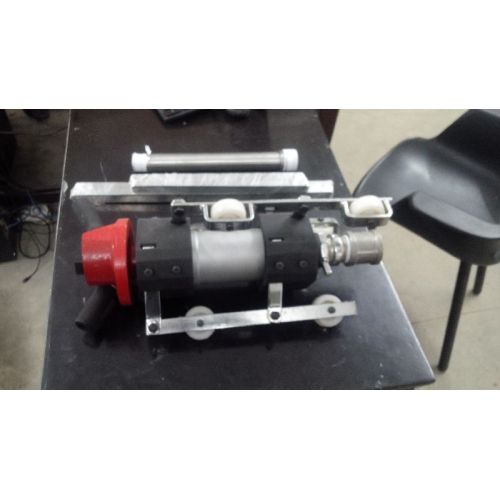

| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Certification | CE Certified |
| Application | Internal Pipe Cleaning |
| Weight | 2000-3000kg |
| Color | Grey |
| Feature | Easy To Use, Fine Finished, Flawless Functioning |
| Model | Rotoblast & Pass Blast |
Preferred Buyer From
| Location | Worldwide |
